Four models of Jindex digitizer:A0/A00/B0/B00;Each model equipped with simple bracket or Independent bracket models (optional)

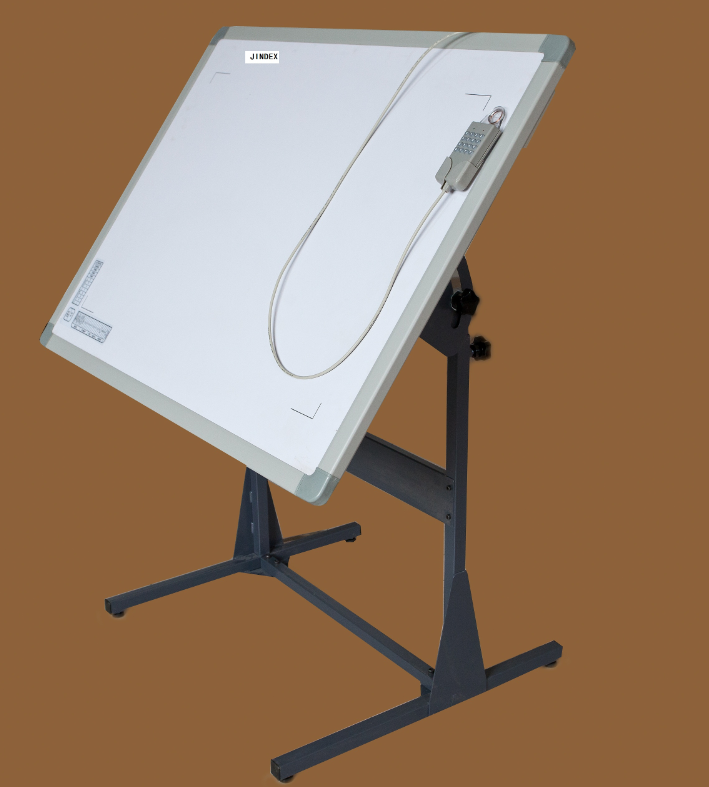

A0/A00 Simple Bracket:

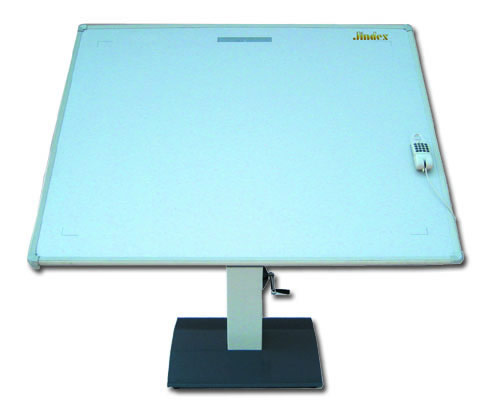

A0/A00 Independent Bracket

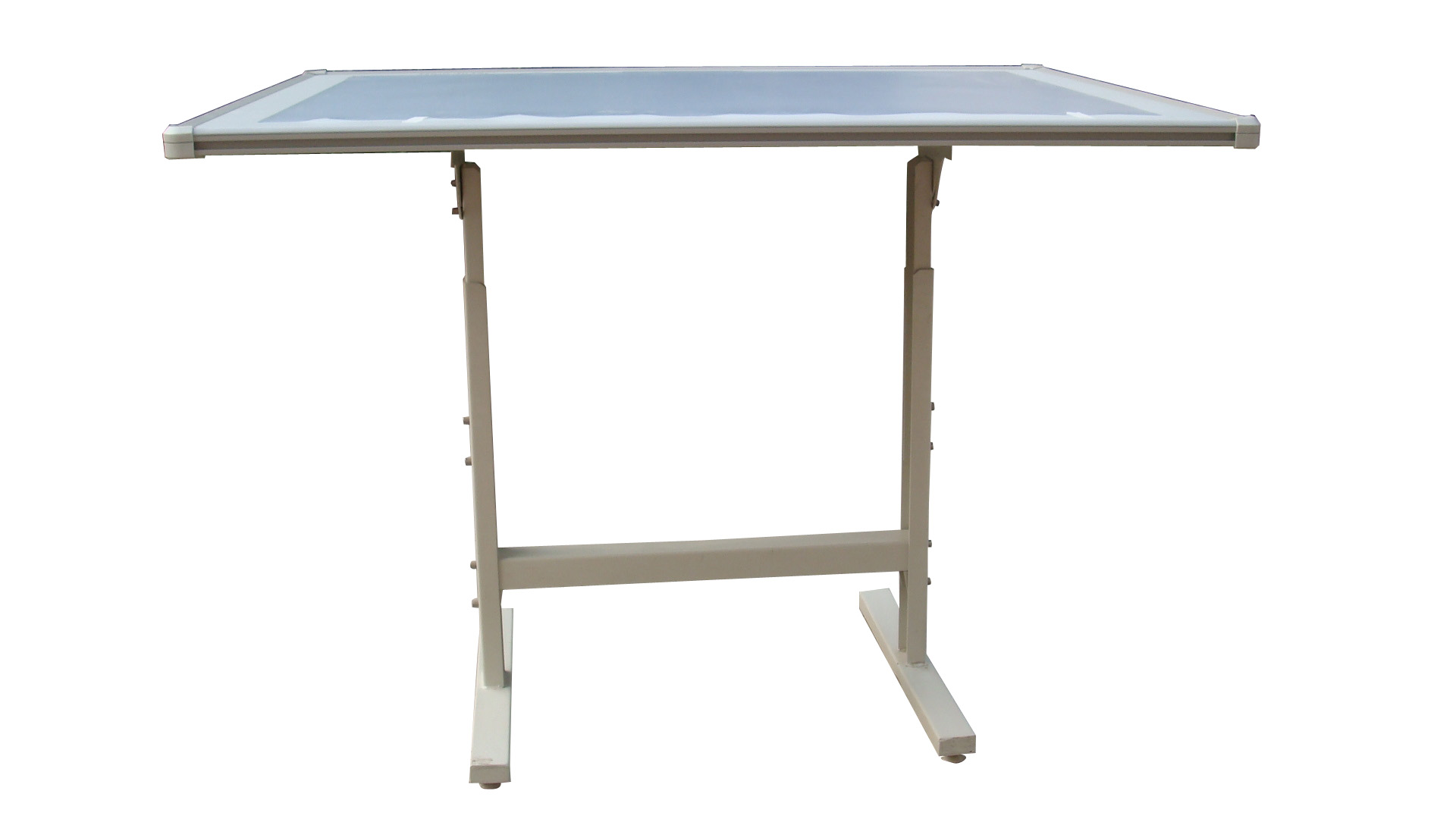

B0/B00 Simple Bracket:
HK Jindex digitizer is a high-performance, low-cost computer input device for CAD, digital mapping, GIS and other applications. The resolution is 2540 lines/inch, the precision is 0.203mm, 0.127mm two-speed, supports more than 30 kinds of standard data formats, the command mode is compatible with the main similar products, and can be connected with the relevant mainstream application software on the market; the format is from A2~A00; Point tools are available with cursors and pens, and are compatible with mouse functions. The digitized panel can be selected to be light-transmissive or opaque, and a special digitizer can be customized.
System Requirement:
There is an RS-232 serial interface that can be connected to a PC or Sunl station, so you only need a computer with serial 486 or higher and a set of application software that can be connected to the digitizer to form a digital system.
Component composition: digital board / main control box / mining point tool
Specifications: Mechanical Connection: RS-232 serial interface / Baud Rate: up to 19,200 / Output Rate: up to 100PPS / Technology: electromagnetic / power specifications: 220V + 10%, 50HZ / Guarantee: one year effective guarantee free technology support.
Detailed description as following table:
Model | Format | Resolution | Accuracy(MM) |
JD-4460C(A00) | 44X60(A00) | 2540線/英寸 | 0.20 |
JD-3648C(A0) | 48X36(A0) | 2540線/英寸 | 0.20 |
JD-3648S(A0) | 48X36(A0) | 2540線/英寸 | 0.127 |
JD-2436C(A0) | 36X24(A1) | 2540線/英寸 | 0.20 |
JD-2436S(A0) | 36X24(A1) | 2540線/英寸 | 0.127 |
JD-1824C(A0) | 24X18(A2) | 2540線/英寸 | 0.25 |
JD-D3DTAB | 24X18(A2) | 2640線/英寸 | 0.25 |
