Functions and Special Features
Jindex AK45 series inkjet printers, with the excellent electromechanical structure in 2010 and the integration of the latest German network transmission technology, have launched the world's first more advanced 3i inkjet printers:
1i. Internet multi-machine networking "cloud printing technology";

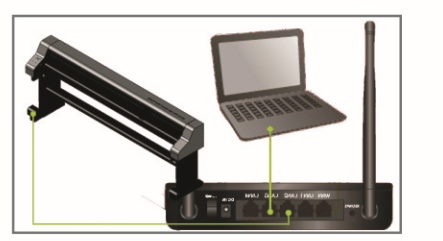

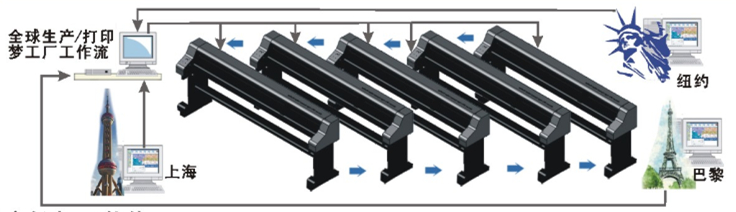

Cloud printing technology: a computer network control up to 50 inkjet machine printing at the same time, HPGLHPGPLTPRN and other files through the local area network or INTERNET free transmission, system free distribution printing, the establishment of your "global printing dream factory" immediately become a reality!
2i. Integrated system
1.The first cloud configuration inkjet printer in the world. After replacing the computer or installing WINDOWS again, the automatic configuration inkjet printer can print normally without 1:1 scale and misalignment of the nozzle.
2. Adopt intelligent paper saving, perfect dynamic control acceleration function, compatible with WIN7,WIN8 and other ink-jet machine incompatible computer operating system.
3. Standard delivery paper motor, bearing 50KG paper roll, paper track and "slide sheet" in the printing platform to prevent paper jam, single, double and four spray free choice, as needed to upgrade the printing capacity.
3i. Intelligent artificial intelligence:
The machine is equipped with powerful artificial intelligence technology, intelligent memory after power failure, and printing on demand after power on, which can coordinate other brands of inkjet machine to print together.
High Speed Inkjet Plotter Jd-Ak45 Series Technical Parameters Standard Table | ||
Technical Parameters/Mode | JD-AK45-185 | JD-AK45-205 |
Maximum Drawn Width | 185cm | 205cm |
Maximum Feed Width | 190cm | 210cm |
Maximum Speed & Resolution | 90 square meters/hour 300dpi | |
Continue Drawing After Emergency Stop | In case of sudden power failure, work interruption and other emergencies, when the printing stops, the system will automatically save the printed file, then select the unprinted area of the file, and continue to print after starting up to prevent repeated printing. | |
Cartridge Type | HP45 Supply ink cartridge | |
Cartridge Number | 2 heads + 1 ink warehouse | |
Curves Quality | Computer curve automatic optimization technology, to ensure that the curve printing effect mellow smooth, print quality and effect is clear and fine, smooth interface, no sawtoot | |
Length Guarantee | Continuous printing more than hundreds of meters, the docking is still perfect | |
Paper Feed Motor | The perfect paper feeding system ensure the continuous and smooth paper feeding in the process of paper printing, which will never lead to the problem of paper not moving, and will never cause the problem of short and long size | |
Port Selection | Super network port or USB conversion port | |
Machine Language | HPGL form GerBER,Lectra,Optitex,Investronic,Assyst,VetiGraph,Tuka,Any Chhinese CAD | |
Power Consumption | <300W;110-260V AC;47-66HZ;(Option:90-120V) | |
Network Printing | Truly realized a computer control multiple inkjet plotter network printing, with the "night printing mode", to achieve the unmanned printing | |
Automatic Paging | The output center software can automatically page print according to the width of the printed file and the maximum print width | |
Gross Weight | 135KG | 150KG |
Control Advantages | Using servo motor with a code plate to control the direction of inkjet printing for ensuring accurate alignment.No grating strips and grating sensors to avoid maintenance and related derivative maintenance after the grating is contaminated with dust. and makes the UPS machine more stable and reliable |
